Innovation Meets Visual Performance
THINKSTV LED equips the Apex Series with advanced display technology for exceptional visual performance. Denali combines a 30 mm ultra-thin profile, 1.25–2.5 mm pixel pitch options, and SMT, GOB, or COB technology. Its energy-efficient design supports sustainability goals, while high contrast and wide viewing angles deliver lasting visual impact.

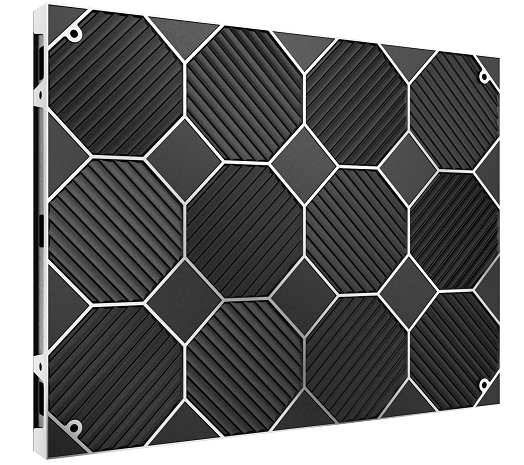

Apex Series has a mass of honeycomb-liked hexagonal cells and mixed with rhombuses, which is made of a solid structure with enhanced stability. With that feature, an LED screen can be built up safely, not bearing any concern about unstable structure and biased stress when piling them up on uneven ground level.
Structural Stability

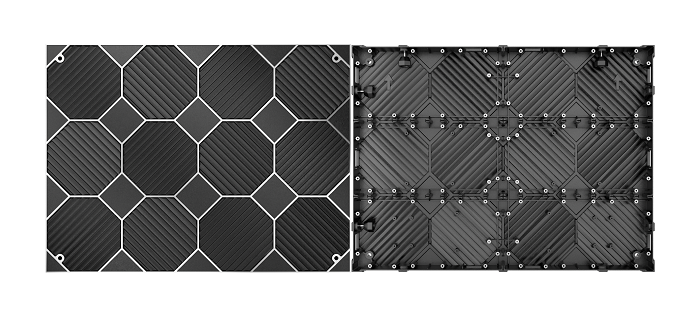

For better heat dissipation, the inside surface has engraved narrow, long grooves in parallel that enables itself to funnel heat from working electrical component against it. It, therefore, guarantees stable digital performance of the LED screen.
Fast heat dissipation

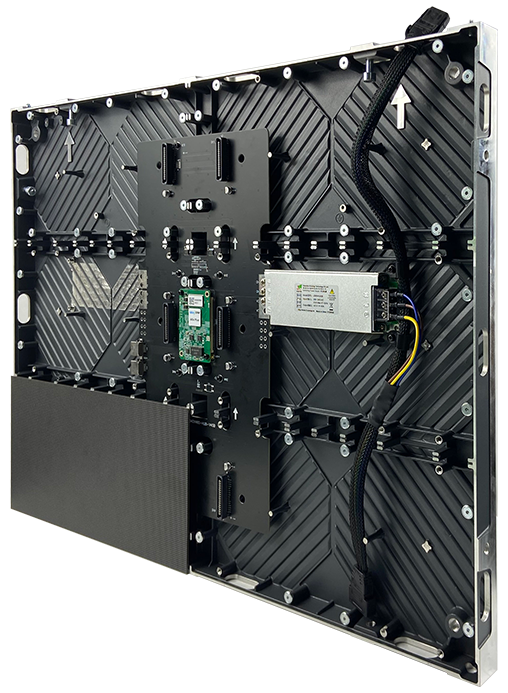

Every electrical product evolves, and simplicity often brings the greatest practical improvement. Within our indoor LED lineup, the Apex Series demonstrates this through a cable-free connection between the integrated HUB board and LED modules.
This design simplifies installation and maintenance while reducing common risks, including accidental contact with the module surface, detached LED chips, premature cable aging, and connection failures.
Being simple

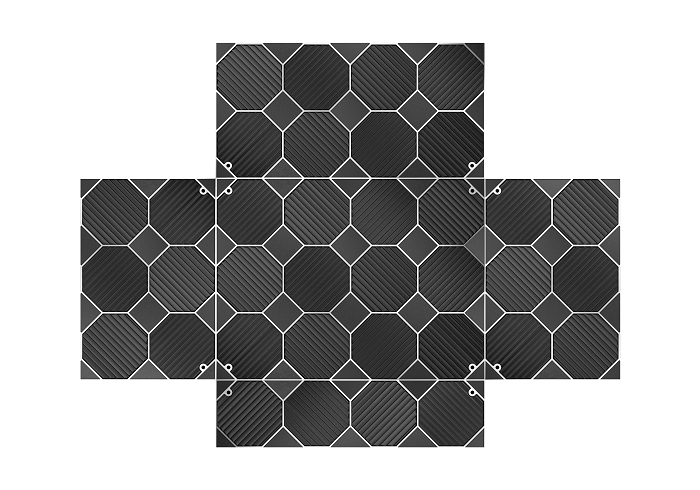

Apex Series can also be convertible in various formations. Square column is one of the classic applications.
Convertible form
Applications
Retail & Shopping Malls
Storefronts, atriums and corridors can present campaign content to opposing pedestrian flows from one slim display position.

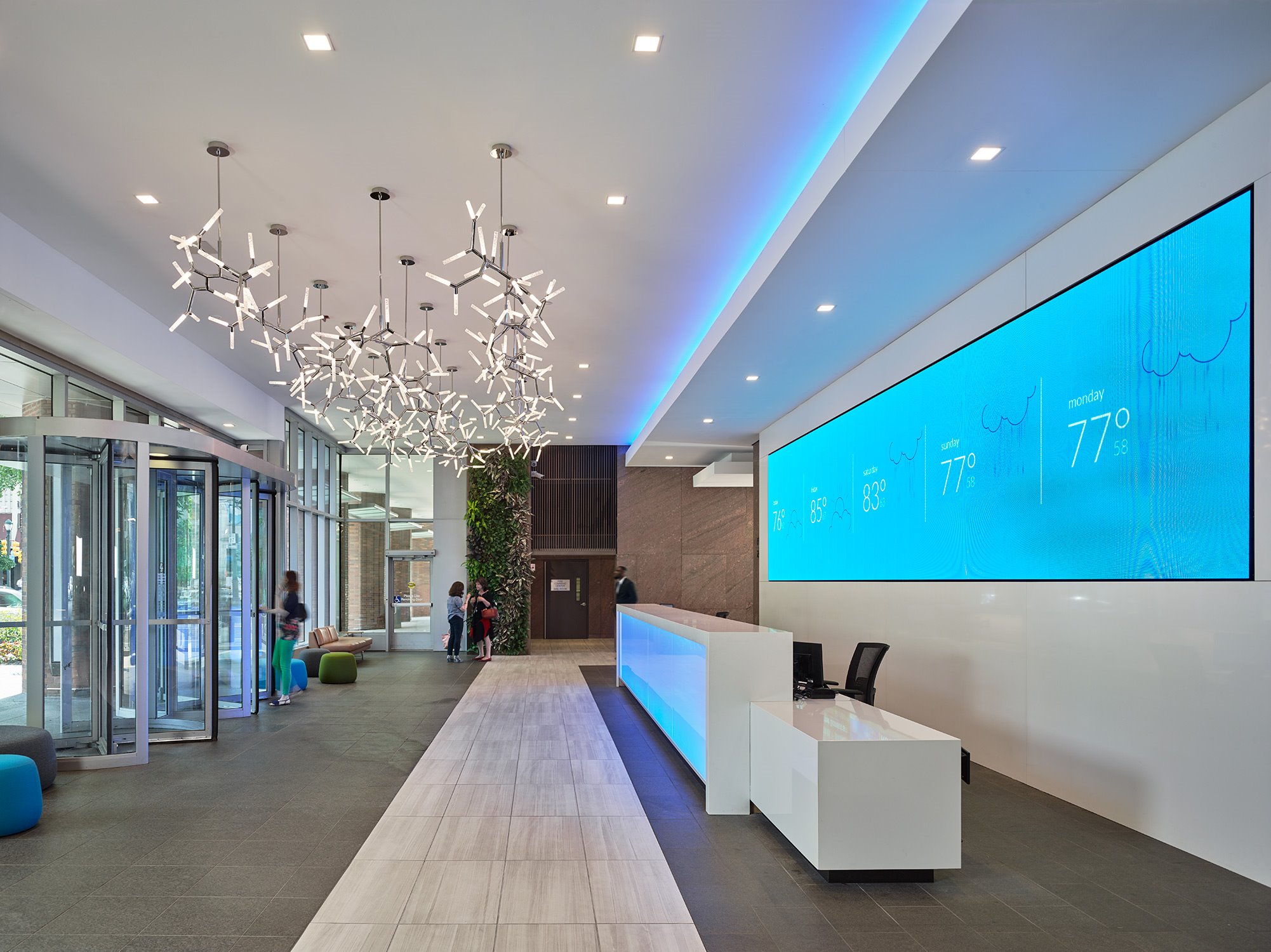

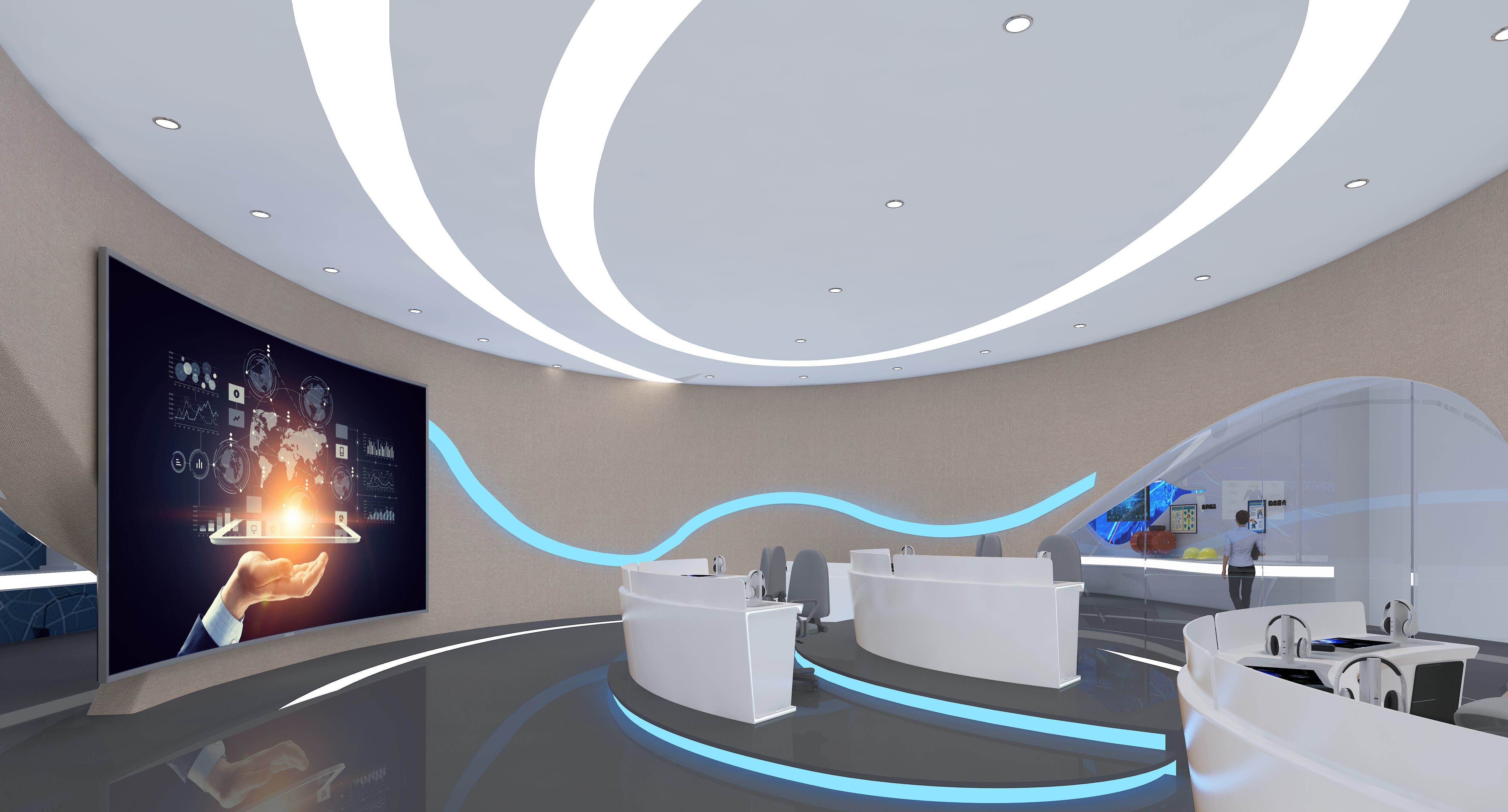

Corporate Lobbies & Experience Centers
Independent content on each face can support reception, visitor guidance and branded storytelling without a deep rear-service enclosure.
Broadcast & Media Environments
Configurations up to 7680 Hz support camera-facing use when the controller, scan settings, brightness and camera parameters are commissioned together.

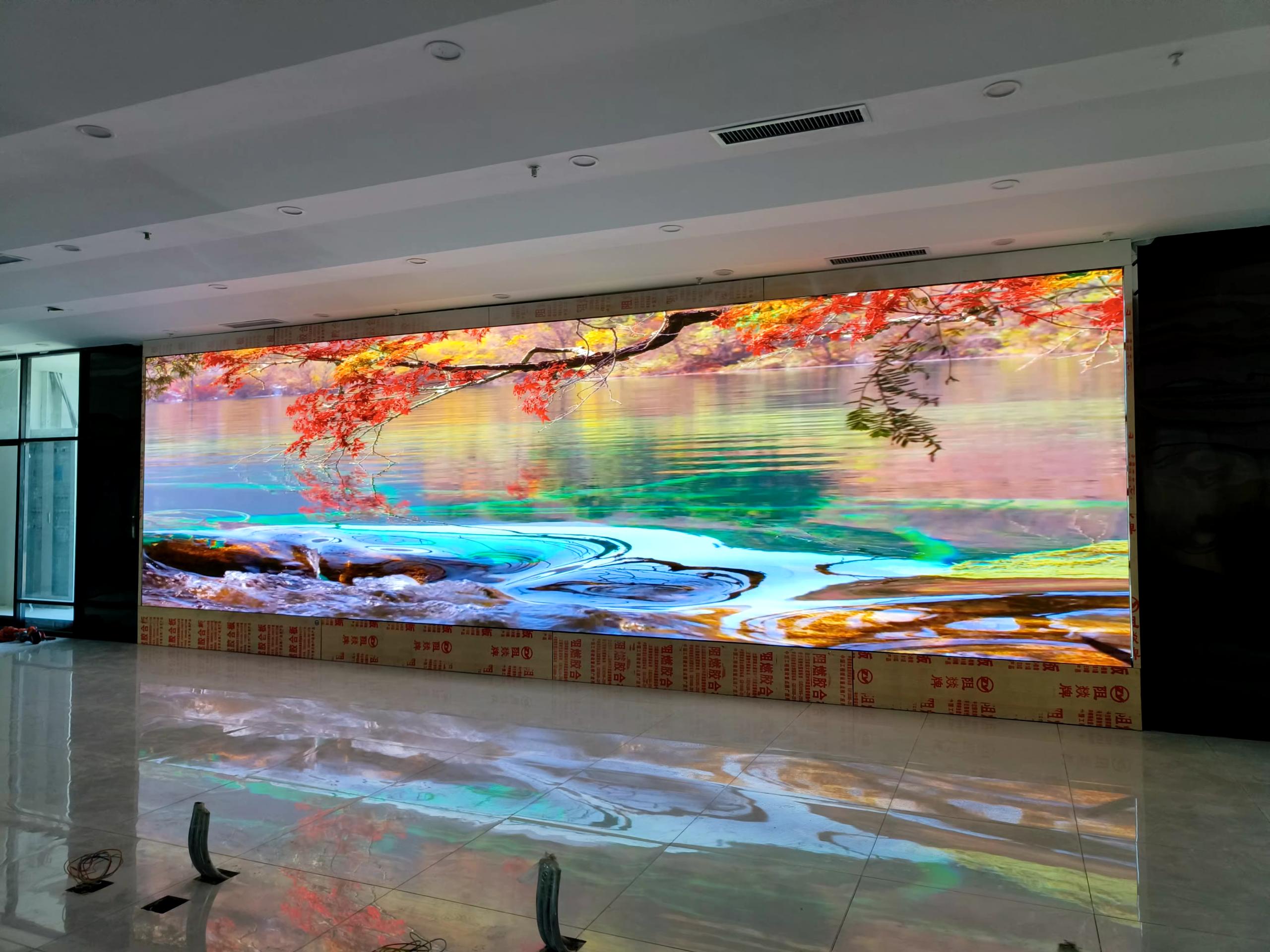

Commercial Interiors & Indoor Advertising
Floor-supported or suspended screens can increase usable exposure in showrooms, hospitality spaces and mixed-use developments with limited floor area.
Apex Series Brochure
Specs
| Item | D1.25 | D1.53 | D1.86 | D2.5 |
|---|---|---|---|---|
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2.5mm |
| LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD2020 |
| Module Size | 320x160mm / 12.59" x 6.29" | |||
| Module Resolution (pixels) | 256x128 | 210x105 | 172x86 | 128x64 |
| Panel Size | 640x480x33mm / 25.19" x 18.89" x 1.29" | |||
| Panel Resolution (pixels) | 512x384 | 420x315 | 344x258 | 256x192 |
| Weight Per Panel | 5.5kg | |||
| Power Consumption Max. / Avg. | Max: 80-100W per panel; avg.: 40-50W per panel | |||
| Serviceability | Front | |||
| Brightness Range | 600-800 nits | |||
| Pixel-level Calibration | Support | |||
| Color Temperature | 6500K (Adjustable) | |||
| Refresh Rate | 3,840 - 7,680Hz | |||
| Viewing Angle | 160°/140° (H / V) | |||
| Grayscale level | 14 - 16 bits | |||
| Contrast Ratio | 5,000:1 (H / V) | |||
| Working Voltage | 110 - 250V, 50/60Hz | |||
| Scan Rate | 1/64 | 1/52 | 1/43 | 1/32 |
| IP Rating | 40 | |||
| * All technical values given in the form are for the panel. They are for reference only; measurements in real world may vary. | ||||
